Vibration Sensor

›

‹

  • Vibration Sensor

›

Vibration Sensor
Installed on equipment with severe vibration such as motors and pumps, it achieves comprehensive measurement of vibration and impact by outputting displacement, velocity, angle and frequency of three-axis vibration. On this basis, it establishes a model by combining the vibration data of the measured equipment (motors, pumps) with fuel consumption, and can simultaneously determine whether the measured equipment is damaged.
Chat on WhatsApp
Contact Sales

Product Details

▌Function Description


Installed on equipment with severe vibration such as motors and pumps, it achieves comprehensive measurement of vibration and impact by outputting displacement, velocity, angle and frequency of three-axis vibration. On this basis, it establishes a model by combining the vibration data of the measured equipment (motors, pumps) with fuel consumption, and can simultaneously determine whether the measured equipment is damaged.


▌Equipment Parameters


Indicator Itemparameters

main

Function

three-axis vibration displacement, three-axis vibration velocity, three-axis vibration angle, three-axis vibration frequency output, to meet the user's vibration and impact of all-round measurement, to determine the measured object (motor water pump) fuel consumption, whether damaged, etc.

detection

cycle

1~100Hz (default 100Hz)

work

voltage

5VDC

work

current

≤ 30mA

environment

temperature

-30 - +60 ℃

Range

vibration speed: 0 - 50 mm/s, vibration angle: 0 - 180 vibration displacement: 0-30000um
accuracy<F. S+5%

Output

data

three-axis vibration (speed + angle + displacement + frequency), chip temperature

protection

level

IP67

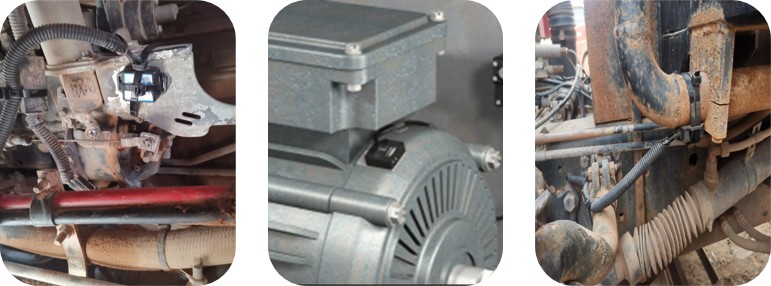

▌installation photo


12
