Explosion-Proof Camera

›

‹

  • Explosion-Proof Camera

›

Explosion-Proof Camera
Divided into explosion-proof cameras and ordinary cameras, they are flexibly installed inside the cab (road ahead, driver), on the top of the vehicle (oil loading port), and on the left and right sides of the vehicle (oil unloading port), working in coordination with the video host via wired connection.
Chat on WhatsApp
Contact Sales

Product Details


▌Function Description


Divided into explosion-proof cameras and ordinary cameras, they are flexibly installed inside the cab (road ahead, driver), on the top of the vehicle (oil loading port), and on the left and right sides of the vehicle (oil unloading port), working in coordination with the video host via wired connection.



▌Equipment Parameters


Indicator Itemparameters
Main Functions

explosion-proof camera is suitable for areas 0, 1 and 2 with explosive mixtures of combustible gases, vapors and air of Class IIA, IIB and IIC T1 ~ T6, as well as areas 20, 21 and 22 with explosive dangerous places formed by mixing combustible dust and air.

Small size, light weight, special anti-seismic treatment, suitable for vehicle installation.

The surface of the tempered glass window is treated with nanotechnology, which has high luminous flux, does not stick to water, does not stick to oil, and repels dust.

Low power consumption design, excellent heat dissipation effect, can work for a long time without interruption.

Lens2.8mm/4mm/6mm fixed focus lens (optional)
working current≤ 1000mA
input voltageDC12V
infrareddistance 15-30m; wavelength 850nm; switch Auto(≤ 10Lux)
ambient temperature-40- 70 ℃
Explosion-proof identificationEx db llC T6 Gb
protection levelIP68/IP66
MaterialAerospace grade aluminum alloy or high quality 304 stainless steel, explosion-proof, dustproof, waterproof and rust-proof.

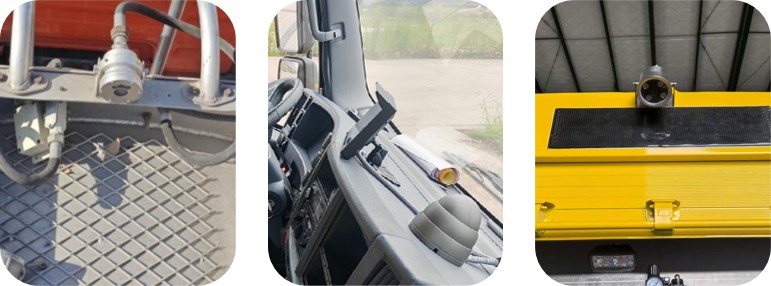

▌installation photo


12
