Automatic Tank Gauge(ATG)

›

‹

  • Automatic Tank Gauge(ATG)

›

Automatic Tank Gauge(ATG)
Installed at the manhole cover on the top of the vehicle, it serves as an intelligent metering device. Working in coordination with the intelligent central control via wired connection, it can stably and efficiently monitor parameters such as the height (volume), temperature, pressure, and water level of oil products in the tank. The controller (Z10) transmits the data back to the background system in real-time.
Chat on WhatsApp
Contact Sales

Product Details


▌Function Description


Installed at the manhole cover on the top of the vehicle, it serves as an intelligent metering device. Working in coordination with the intelligent central control via wired connection, it can stably and efficiently monitor parameters such as the height (volume), temperature, pressure, and water level of oil products in the tank. The controller (Z10) transmits the data back to the background system in real-time.



▌Equipment Parameters


Indicator Itemparameters
Main FunctionsMeasurement principle and characteristics: Based on the principle of magnetostriction, it has the advantages of high precision, high reliability, long life, stable performance, exquisite structure, strong environmental adaptability and convenient installation.
Communication and transmission: RS485 industrial field bus is used to communicate with intelligent central control (Z10).
Range500 mm-6000mm
Power Supply24VDC
Product Power Consumption≤ 60mA
Working Temperature-30 - 60 ℃
Measurement Accuracy±0.5mm;
Oil/water Level Resolution0.01mm
Temperature Measuring Point5
Upper/Lower blind area60mm/50mm
Explosion-proof GradeEx ia IIA T5 Ga
Applicable MediumGasoline, kerosene, diesel, light oil, heavy oil, methanol, toluene, ethanol and other liquids
Protection LevelIP67

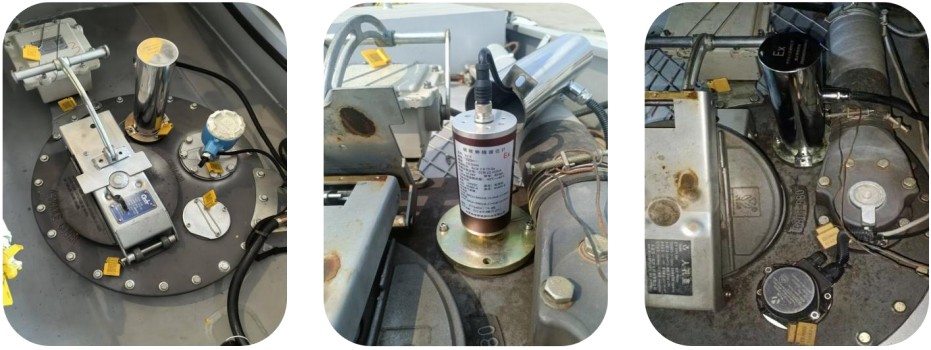

▌installation photo


12
