Flowmeter
This device is installed at the oil unloading port on the bottom of the vehicle, serving as an intelligent metering device. It works in coordination with the controller via wired connection, stably and efficiently achieving accurate digital metering of the oil unloading quantity. The intelligent central control transmits the data back to the background system in real-time, while also supporting on-site viewing.
Chat on WhatsApp
Contact Sales

Product Details

▌Function Description


This device is installed at the oil unloading port on the bottom of the vehicle, serving as an intelligent metering device. It works in coordination with the controller via wired connection, stably and efficiently achieving accurate digital metering of the oil unloading quantity. The intelligent central control transmits the data back to the background system in real-time, while also supporting on-site viewing.



▌Equipment Parameters


Indicator Itemparameters
Main Functions1. High accuracy: The accuracy level of the waist wheel flowmeter is better than ± 0.03%.
2. Good reliability: The internal structure of the waist wheel flowmeter is simple and has no moving parts, so it has high reliability and the service life can reach more than ten years.
3. Large range: The flow range that the waist wheel flowmeter can measure is wide, and the flow range is 10:1, which can adapt to the measurement requirements of different flow ranges.
4. Easy to install and use: The structure of the waist wheel flowmeter is simple, and the installation and use are relatively convenient, without additional pumps.
input voltageDC12V
maximum power5W
ambient temperature-40-+70 ℃
signal outputcan choose 4 ~ 20mA (three-wire system) analog signal, 1 - 5V, pulse signal, RS485 communication, MODBUS, 4 ~ 20mA + HART protocol
measurement accuracybetter than ± 0.03%
Connection Modeflange connection

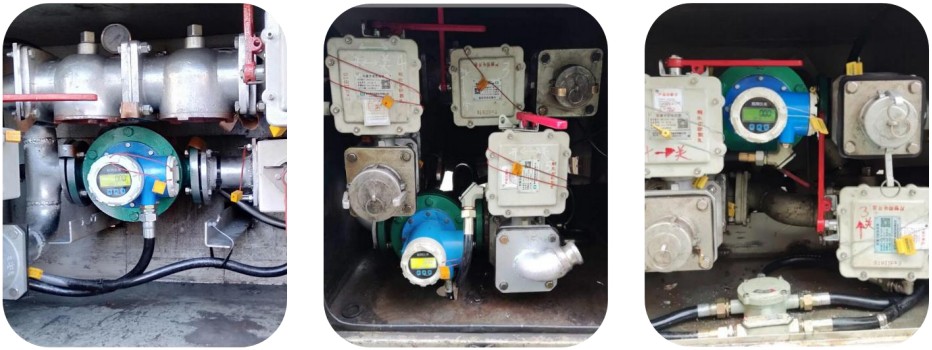

▌installation photo


12
