Portable Flowmeter

›

‹

  • Portable Flowmeter

›

Portable Flowmeter
This device can be flexibly applied to various metering scenarios such as oil loading and unloading. Equipped with 4G communication function, it can achieve seamless data interaction with the intelligent lead seal system, and at the same time supports an independent operation mode to meet diversified application needs.
Chat on WhatsApp
Contact Sales

Product Details

▌Function Description


This device can be flexibly applied to various metering scenarios such as oil loading and unloading. Equipped with 4G communication function, it can achieve seamless data interaction with the intelligent lead seal system, and at the same time supports an independent operation mode to meet diversified application needs.



▌Equipment Parameters


Indicator Itemparameters
Main Functionsportable flowmeter is an intelligent low power consumption instrument. It is powered by battery and is mainly used for unloading oil in oil tankers. Its interior adopts high-end chip of ARM core, combined with touch keys and dot matrix LCD screen, the whole instrument can achieve ultra-low power consumption, can store oil unloading records for each time, and can also export oil unloading records through USB port, which is convenient for statistical management and the product is stable and reliable.
accuracy± 0.03%
power supply3.6V Lithium Sulfur Milling Chlorine Battery
power consumptionworking state 1.5mA; sleep state 60uA;
ambient temperature-40-+70 ℃
signal outputcan choose 4 ~ 20mA (three-wire system) analog signal, 1-5V, pulse signal, RS485 communication, MODBUS, 4 ~ 20mA + HART protocol
Display1258*64 pixels; backlight adjustable brightness
communication modeUSB/4G/Bluetooth
relative humiditynot more than 95%
Pollution LevelClass III

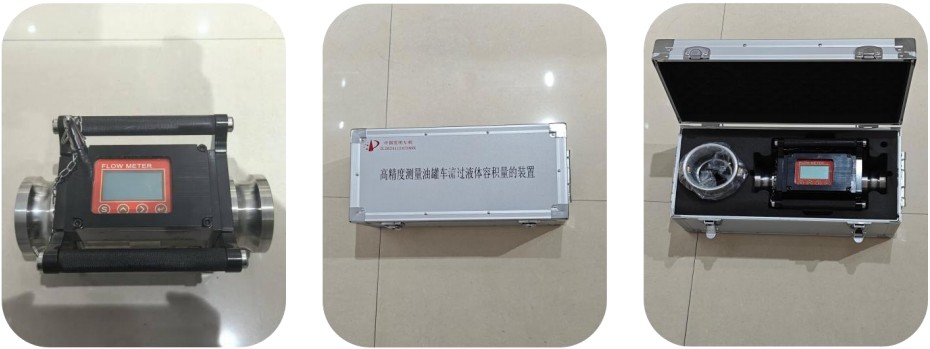

▌Device Photos


12
