Pipeline Flowmeter

›

‹

  • Pipeline Flowmeter

›

Pipeline Flowmeter
Installed on the pipeline between the fuel tank and the engine, it performs real-time monitoring of the engine's instantaneous fuel consumption and sends pulse signals, working in coordination with the receiving terminal (Z20) via wired connection
Chat on WhatsApp
Contact Sales

Product Details

▌Function Description


Installed on the pipeline between the fuel tank and the engine, it performs real-time monitoring of the engine's instantaneous fuel consumption and sends pulse signals, working in coordination with the receiving terminal (Z20) via wired connection.



▌Equipment Parameters


Indicator Itemparameters
Main FunctionsBasic principle: Based on the principle of torque balance, it belongs to the speed flow meter. It has the characteristics of simple structure, light weight, good precision, good reproducibility, sensitive response, convenient installation, maintenance and use.
Stable output signal: output pulse frequency signal, no zero drift, good anti-interference ability.
Wide measuring range: medium and large caliber measuring range up to 1:20, small caliber 1:10.
Compact structure: simple structure, convenient installation and maintenance, large circulation capacity.
Range500 mm-6000mm
power supply12VDC
Product Power Consumption≤ 60mA
working temperature-30 - +70 ℃
measurement accuracy± 0.5% R, with instrument correction and intelligent compensation.
Explosion-proof gradeEx ia IIA T5 Ga
Applicable mediumGasoline, kerosene, diesel, light oil, heavy oil, methanol, toluene, ethanol and other liquids
protection levelIP67

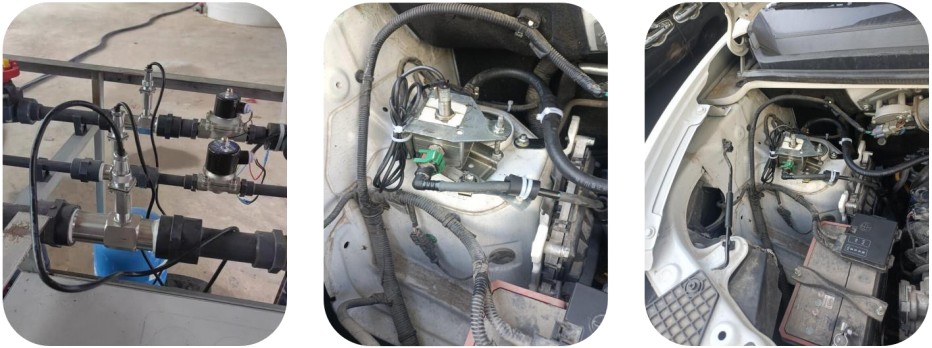

▌installation photo


12
