Emptying Sensor(P10)

›

‹

  • Emptying Sensor(P10)

›

Emptying Sensor(P10)
This device is installed at the oil unloading port pipeline, serving as an intelligent monitoring tool for refined management. It works in coordination with the intelligent central control system via wired connection. Its core function is real-time monitoring of the accumulation status of liquid in the pipeline, accurately determining whether the oil products are completely unloaded, thus providing reliable data support for the management of oil loading and unloading.
Chat on WhatsApp
Contact Sales

Product Details

▌Function Description


This device is installed at the oil unloading port pipeline, serving as an intelligent monitoring tool for refined management. It works in coordination with the intelligent central control system via wired connection. Its core function is real-time monitoring of the accumulation status of liquid in the pipeline, accurately determining whether the oil products are completely unloaded, thus providing reliable data support for the management of oil loading and unloading.



▌Equipment Parameters


Indicator Itemparameters

Main Functions

core monitoring: through the collection of temperature and humidity, infrared, pressure and other indicators, monitoring whether the pipeline oil emptying.

basic characteristics: simple appearance, stable work, communication standardization, wide application environment.

data transmission: industrial-grade data transmission, reliable performance and good compatibility.

Installation advantages: small size, easy to install.

Scenario Adaptation: Good adaptability for different industry scenarios.

input voltage

DC12V

maximum power

5W

ambient temperature

-40-+70 ℃

Shell material

ZL102 aluminum alloy precision high pressure die casting

Installation Method

Wafer
relative humiditynot more than 95%

Pollution Level

Grade III

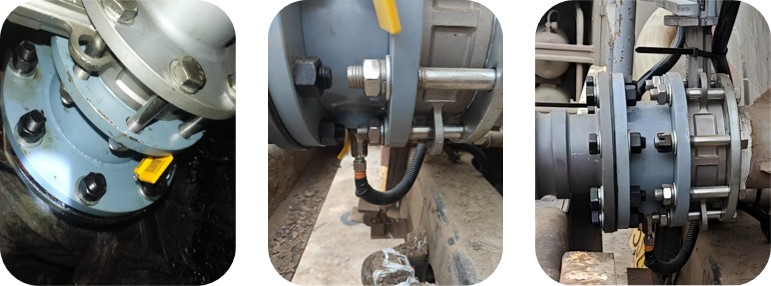

▌installation photo


12
